ZT-N
zhitian

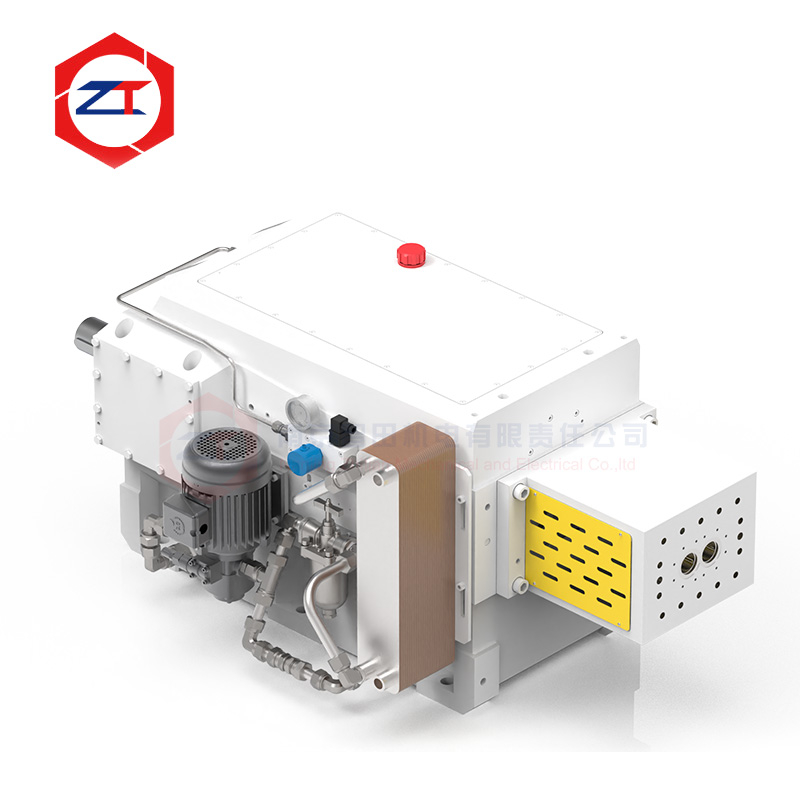

The ZT-N gearbox is a domestic independent research and development product, a symmetrical structure, an upgrade of the SHTD gearbox. Prior to the previous generation, the appearance is more tendered, and the performance is more stable and efficient energy saving, the torque grade is<13, has a wide range of applications in the fields of sheets, wood plastic, granulation. Its characteristics are as follows:
MODEL | CD (mm) | Nm/cm³ | Ratio 5 | Ratio 3.75 | Ratio 3 | Ratio 2.5 | Ratio 1.87 | Ratio 1.67 |
ZT20N | 18 | <13 | / | / | / | 7.5kW | 11kw | / |
ZT25N | 22 | <13 | / | / | 11kw | 15kw | 18.5kW | 22kw |
ZT30N | 26 | <13 | / | / | / | 22kw | 30kw | 37kw |
ZT35N | 30 | <13 | 18.5kW | 22kw | 30kw | 37kw | 50kw | 60kw |
ZT40N | 34.5 | <13 | 30kw | 45kw | 55KW | 65KW | 90KW | 90KW |
ZT50N | 42 | <13 | 55KW | 75KW | 90KW | 110kw | 132KW | 160kw |
ZT52N | 43 | <13 | 55KW | 75KW | 90KW | 110kw | 132KW | 160kw |
ZT58N | 48 | <13 | 90KW | 110kw | 132KW | 160kw | 220kw | 250KW |
ZT65N | 52 | <13 | 110kw | 132KW | 160kw | 220kw | 280kw | 315KW |
ZT75N | 60 | <13 | 160kw | 220kw | 250KW | 315KW | 450kw | 500KW |
ZT85N | 67.8 | <13 | 220kw | 315KW | 400kW | 500KW | 600kW | 650KW |
ZT95N | 78 | <13 | 350KW | 450kW | 550KW | 650KW | 900KW | 1000kW |
ZT110N | 92 | <13 | 560kw | 710KW | 900KW | 1000kW | / | / |
ZT125N | 100 | <13 | 800KW | 1000kW | 1250KW | 1400kW | / | / |
ZT135N | 110 | <13 | 1000kW | 1400kW | 1600KW | 2000kw | / | / |
ZT150N | 120 | <13 | 1320KW | 1750KW | / | / | / | / |
Housing
High Strength&High Precision
Select high strength cast iron
High precision CNC boring machines
High stiffness shock absorption design
Gears
Advanced Processing Technology
Material: 17CrNiMoA
High precision grinding and gear modification
Carburized,Hardness(HRC 58`62)
Bearings
Super High Load&Long Life
Use the world famous bearings
Axial bearer:294 series self-aligning roller bearing
Multiple optimization of bearing design
Lubrication&Cooling
Safety And Reliability
Forced spray lubricatio
Effective plate heat exchange
Flow/Temperature/Pressure monitor design
FAQ：
1. Q: What models are available in the ZT-N series gearbox?
A: The ZT-N series currently covers models from 20 to 177, suitable for various twin-screw extrusion applications.
2. Q: What is the torque rating of the ZT-N gearbox?
A: The ZT-N series offers a torque density of up to 13, providing higher load capacity and improved performance.
3. Q: Can the gearbox be customized for specific extrusion lines?
A: Yes, we offer customization options based on your extrusion process, screw configuration, and technical requirements.
4. Q: What materials are used in the gearbox construction?
A: We use high-strength carburizing alloy steel for the gears and premium ductile iron for the housing, ensuring durability and stability under high loads.
5. Q: Do you provide technical support and after-sales service?
A: Absolutely. We offer full technical support, installation guidance, and prompt after-sales service to ensure your production runs smoothly.
